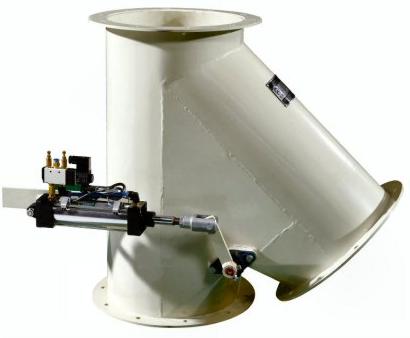

Pneumatic Two-Way



Flange connection sealed rubber strip

 Cylinder solenoid valve, pneumatic connector

Magnetic switch – for electrical control, used to control switch discharge

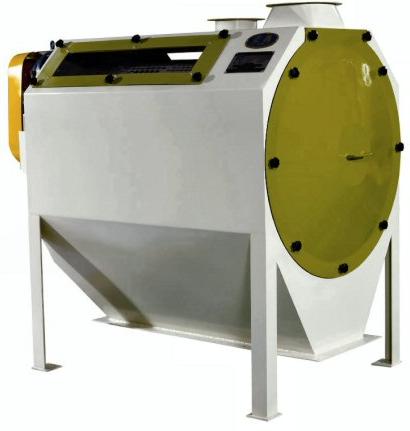

SCY Drum Pellet Screener/SCY Cylinder Cleaning Sieve Series

It is mainly used in receiving, cleaning and pre-cleaning raw materials such as rice, feed, food etc

The sieve plate comes in different specifications for cleaning and pre-cleaning of wheat, corn, rice, oil and other materials. Change the output by changing the diameter of sieve hole, normally calculated  by hole opening rate, it means the area of the holes per every unit of sieve plate.

SQLZ/SQLT Series Powder Screener

  • Mainly used in compound feed mills and powder cleaning factories
  • Effectively seperates straw, stone, paper and other sundries allowing material to pass through other equipmentsmoothly.
  • The sieve can also be used for sieving, crushing or removing agglomerated materials after mixing, to ensure the quality of the compound feed.
  • Working Principle
  • Fed into the sieve drum by the screw feeder, the powder is hit by the rotating beat plate and the lumpy impurities inside are broken into pieces. Pushed by the beat plate, the powder moves around the drum and during that process, the smaller powders pass through the sieve hole and get discharged from the bottom. The bigger impurities move toward the inlet and get discharged.

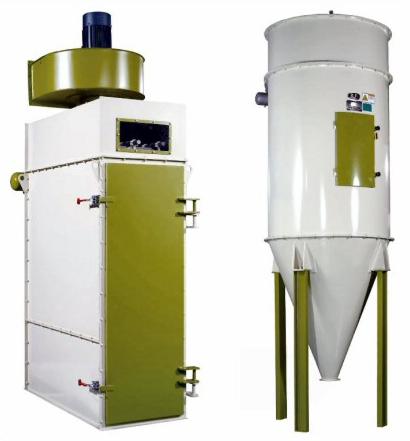

TBLMY Cylinder Pulse Filter

Mainly used for air conveying, such as micro grinding section and fine grinding section.

TBLMF Square Pulse Filter



Square cylinder mainly used for dust collecting.



  • Widely used for dust separation of dusty gases.
  • Siutable for many industries like food, grain, medicine, building materials, chemicals
  • The body of the filter frame is bend welded to improve dust seal with high strength structure and less residue of raw materials

*The filter bag is tubular type and supported by bone frame, connected with venturi tube, easy to disassemble and replace

  • Wide opening overhaul door, screw down lock, sealing strip.
  • Nylon bag features good ventilation and longer life.
  • Pulse controller to control frequency of air blowing
  • Air tank, pneumatic parts, solenoid valve, pressure reducing valve and steam separator.
  • Bottom suction feeding is conducive to waste recovery
  • Large air handling capacity, small floor area and low noise.
  • Highly effective filter with easy access to change filter bags

Durable system to pulse and clean bags

Low maintenance

Easy to installing with hammer mill

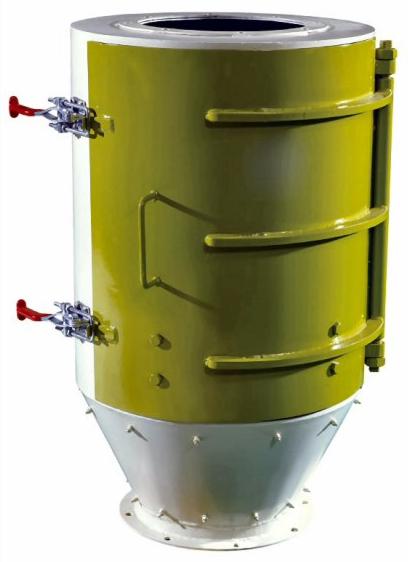

TCXT Magnetic Drum



Robust design

  • Effectively remove steel from the feed stream
  • Easy to install and very easy to remove steel debris from the magnet
  • Low wear to abrasive materials
  • Stainless steel hull
  • Rare- earths magnet for the magnet core
  • Big open door for clearance, easy for cleaning
  • Working Principle
  • TCXT series magnetic drum is mainly composed of external drum and triple knives on both sides. The drum is connected to the conveying pipes by the upper and lower flanges. Installed in centre of the drum, the magnets are on the door of the drum backed by the bearing on the base. The stainless steel cone and cover separate the magnets. The materials will pass through the gap between the drum and the cone. As gap is full of magnetism, the irons in the materials will be magnetized, drop gradually and absorbed on the surface of the cone.
  • Magnetic cleaning: Open the door of the drum, rotate the magnets outside the drum, and clean the impurities with hands.

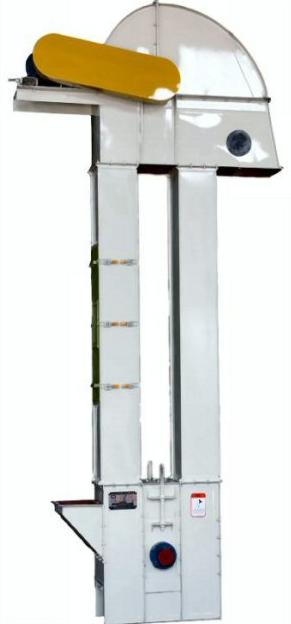

TDTG Series Bucket Elevator



Widely used for vertical conveying of materials in port, silo, warehouse, feedand other industries

Fireproof and wearable rubber pulley

Observation window and explosion vent, prevents dust explosion, safe and reliable.

Back stop mechanism in case of blocking.

Head wheel is coated with refined rubber which is wear resistant and skid proof improving transmission efficiency.

The barrel is made through a special folding process giving high strength and good sealing performance.

There are 2 types of the barrel plates, one is closed type plate, the other is L shape plate.

This barrel is the closed type plate, which is directly moulded seams, the barrel plates will be bolted on-site,  better performance in sealing, but it needs more space during transportation compared with the L plate barrels.

Equipped with high strength light plastic bucket, light weight, wear resisting, improve capacity and reduce power consumption.

Adopt PVC belt, low extension rate, reliable.

The base can be equipped with forward or backward inlet hopper, to satisfy different customer’s requirements thus it may be  installed with clockwise direction or counterclockwise direction feeding hopper.

The base frame tensioning device uses  gravity type or screw tensioning.

Optional automatic deviation alarm and speed monitoring system.

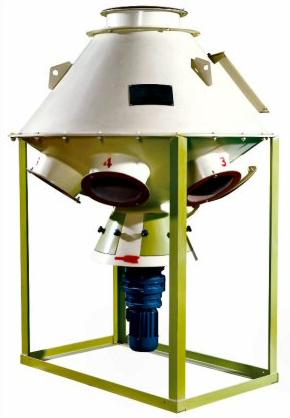

TFPX Series Rotary Distributer



TFPX series rotary distributor is a long- distance control mechanism for the supply of materials from one point to various points and can be used for receiving of raw materials into the warehouse or routing of products into batching bins. Automatically adjusts and allows material to be conveyed into the predetermined position by self-flow.

Distributor has various self- suction types

Compact structure, accurate positioning and fast input and output of materials.

Easy operation and maintenance.

OMRON limited switch, positioning accurately

With self- cleaning structure, discharge tube, sealed bearing.

Large door opening for clearing

Manual, linkage, power-off protection switch

Dust absorption to prevent overflowing – It can automatically clean internal dust.

The distribution pipes are equipped with sample opening & observation hole

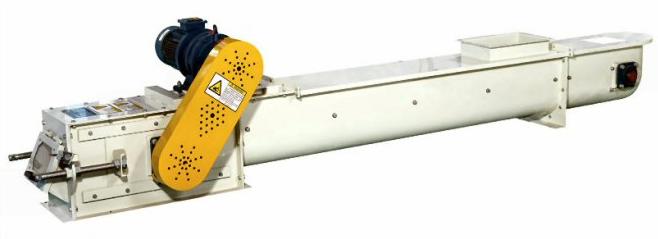

TGSU Series U Drag Conveyor



It is continuous self-cleaning conveying equipment, mainly used in conveying powder material and pellet material.

Bottom is U type closed trough. Scraper is made of wear-resisting plastic.

Low noise, low residue, long service life.

The feeding port can be installed as required for direct feeding and side feeding.

The riding wheel effectively reduces resistance of the scraper chain reducing noise and saving electricity.

The base plate can be replaced to extend the service life of the conveyor

Simple structure, good sealing, flexible position, low power consumption

Widely used in grain, feed, premix, light industry, chemical industry, etc.

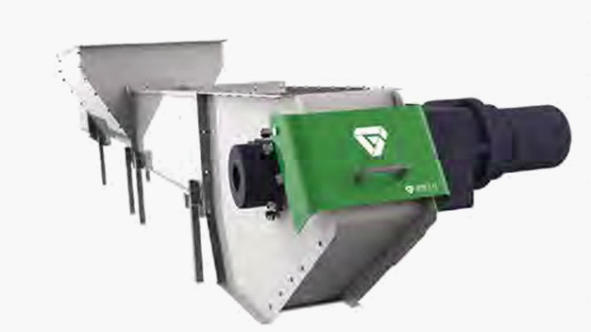

TGSS Series Large Type
En-Masse Conveyor



  • Widely used in horizontal or inclined conveying of materials
  • Suitable for multi-point feeding and discharging
  • Equipped with over-load starting device, anti-blocking and anti-chain-breaking alarm device
  • Guide rail is made of specially treated wear-resisting material resulting in low noise and extended life
  • Scraper is made of polyurethane materials
  • Chains are wear-resistant and strong, capable of conveying long distances.
  • The tail is equipped with chain tensioning device for easy operation and reliable sealing.
  • TGSS series drag/chain conveyor, is a different type conveyor, different from screw conveyor, it is conveying materials by scrapers, TGSS series is for pellet materials, such as maize, feed pellets. The difference between TGSU and TGSS is TGSU is more suitable for powder materials, because it leaves less residue

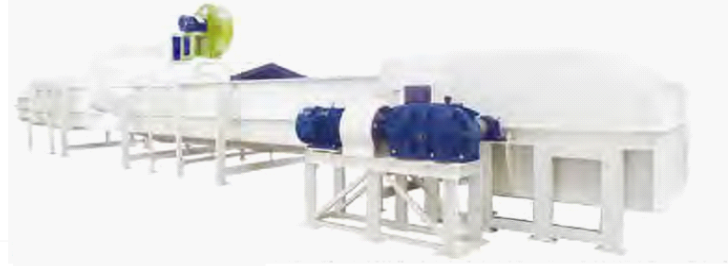

DDQ Series Air-Cushion Conveyor



Widely used in horizontal or inclined conveying of materials

  • Utilises a thin film instead of a roller which improves the operating conditions of the belt and reduces friction resistance
  • The conveyor is a fully enclosed structure with little dust, low noise and green environmental protection.
  • The head wheel is rubber coated with large friction coefficient improving the transmission efficiency.
  • Fully sealed self-cleaning returning device prevents residue
  • According to the length and working conditions of the equipment screw tensioning mode or fixed rail type gravity tensioning mode can be utilised.
  • Equipped with access port, observation window and dust proof port to measure the speed and prevent deflection and blockage

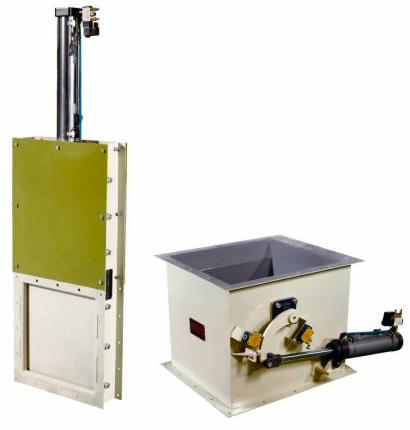

TZMQ Pneumatic Slide Gate



Materials: Q235A Carbon Steel

  • Flange connection, sealed rubber strip
  • Cylinder, solenoid valve, pneumatic connector
  • Magnetic switch for electrical control, used to control switch discharge
